WHAT WE DO
WE SUPPLY THE FOLLOWING
Chains
Hard drawn wire
Cold Rolled
Black Annealed wire
Bedding Wire

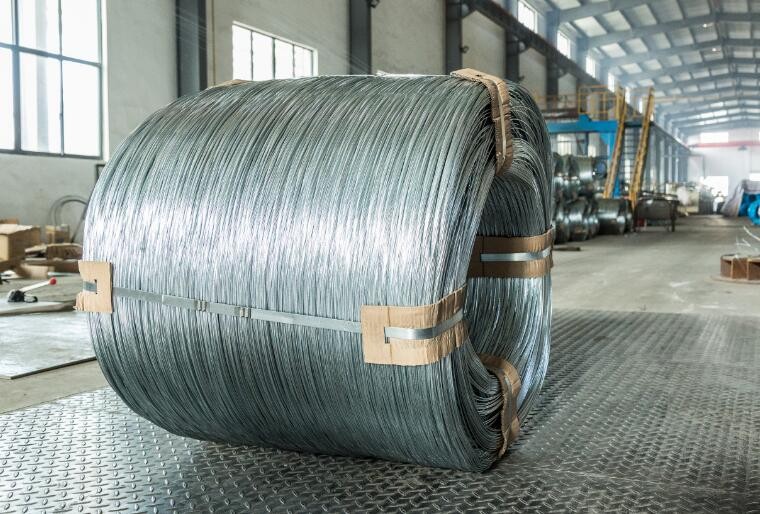

Galvanized Wire:
Lightly Galvanized Wire
Fully Galvanized Wire
Black Wire:
Chain: 3:7.1mm: Reel 180KG
Chain: 3:7.1mm x 1240mm
Chain: 3:10mm x 1200mm
Chain: 3:20mm x 6000mm
Lubricants
Chain-drive lubricants
Wire rope dressings
Fencing Products
Barbed wire
Diamond mesh
Hinge Joint (Field Fence)
Spooled baling wire
Razor Coil
Round Wire Nails
Rope thimble
Lifting Equipment
Chain Blocks
Lever Hoists
Electric and Air Hoists
Scraper Winches
Fall Arrest Harness
SPECIFICATION: |
FINISH: |
ROLL LENGTH: |
PACKING: |
Fully Galvanized Stay Wire |
Bright Galvanized, Right Hand Lay |
As per customer requirements |
Loose rolls or wooden reels |
Nominal Strand Size | Construction | 500 MPa Breaking Force (kN) | 700 MPa Breaking Force (kN) | 1100 MPa Breaking Force (kN) |
5,10mm | 7/1,70mm | 7,8 | 11,0 | 17,3 |
6,40mm | 7/2,12mm | 12,2 | 17,1 | 26,9 |
7,20mm | 3/3,35mm | 13,1 | 18,4 | 29,0 |
8,60mm | 3/4,00mm | 18,7 | 26,2 | 41,2 |
8,00mm | 7/2,65mm | 19,2 | 26,8 | 42,1 |
9,80mm | 4/4,00mm | 24,9 | 34,9 | 54,9 |
10,10mm | 7/3,35mm | 30,7 | 42,9 | 67,5 |
10,80mm | 5/4,00mm | 31,2 | 43,6 | 68,6 |
12,00mm | 7/4,00mm | 43,6 | 61,1 | 96,0 |
SPECIFICATION: |
CORE: |
FINISH: |
ROLL LENGTH: |
PACKING: |
Scraper Rope (Haulage Rope) |
Polypropylene or Sisal core available |
Rope is protectively dressed using a bitumen-based coating. |
All rope is Right Hand Lang’s Lay |
As per customer requirements |
Loose rolls or wooden reels. |
Rope Diameter (mm) | Rope Construction | Rope Tensile MPa | Rope Breaking Force (kN) |
13mm | 6 x 6 (6/F)/F | 1550 – 1750 | 80 |
13mm | 6 x 7 (6/1)/F | 1550 – 1750 | 90 |
16mm | 6 x 6 (6/F)/F | 1550 – 1750 | 126 |
16mm | 6 x 7 (6/1)/F | 1550 – 1750 | 141 |
19mm | 6 x 6 (6/F)/F | 1550 – 1750 | 175 |
19mm | 6 x 7 (6/1)/F | 1550 – 1750 | 196 |
22,5mm | 6 x 6 (6/F)/F | 1550 – 1750 | 241 |
22,5mm | 6 x 7 (6/1)/F | 1550 – 1750 | 271 |
QUALITY ASSURANCE
All products and materials required to complete an installation or project are purchased from reputable suppliers adhering to all SABS and ISO codes required by industry regulators and other governing bodies or professional entities that suppliers must adhere to.
CONCLUSION
We keep our promises, and we deliver what we commit to. As a small company, we value YOU as a client and welcome any type of communication to give you the assurance that your project is headed for the right outcome.
